Flanges compactos, clamp connectors e vedação metálica. Compact flanges, clamp connectors and metal sealing.
Tecnologia para aplicações em altas pressões e temperaturas em diversos segmentos, incluindo óleo e gás e nuclear — materiais qualificados NACE MR0175 / ISO 15156, com certificação DNV, Lloyd's, ABS e Bureau Veritas. Technology for high-pressure and high-temperature applications across multiple segments, including oil & gas and nuclear — materials qualified to NACE MR0175 / ISO 15156, with DNV, Lloyd's, ABS and Bureau Veritas certification.
Séries ASME e API CF, em materiais de aço carbono a Inconel 625/825 e titânio. Aplicações inclui conexões clamp WIRELOC® para sistemas de processo de alta exigência.ASME and API CF series, in materials from carbon steel to Inconel 625/825 and titanium. Applications include WIRELOC® clamp connectors for demanding process systems.
Ver no fabricante ↗View at manufacturer ↗Substitui flanges ASME B16.5 e B16.47 por geometria clamp compacta, com anel de vedação metálico WIRELOC® interno — mais de 80% de economia de peso e de espaço.Replaces ASME B16.5 and B16.47 flanges with a compact clamp geometry and an internal WIRELOC® metal seal ring — over 80% weight and space savings.
Ver no fabricante ↗View at manufacturer ↗Tecnologia de vedação metálica especificada nos projetos de óleo e gás mais críticos e de maior exigência do mundo.
Metal-sealing technology specified in the world's most critical and demanding oil & gas projects.

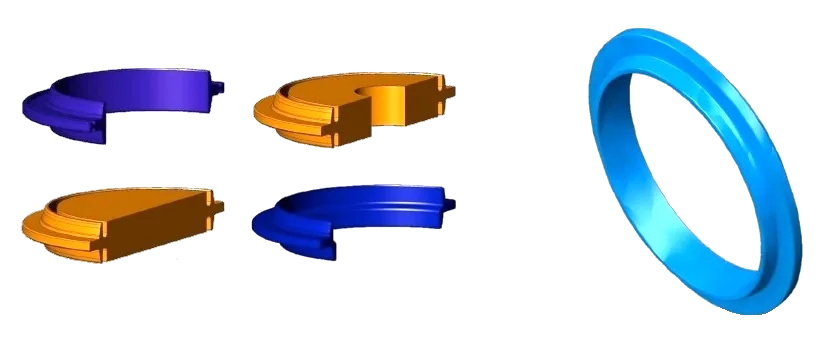

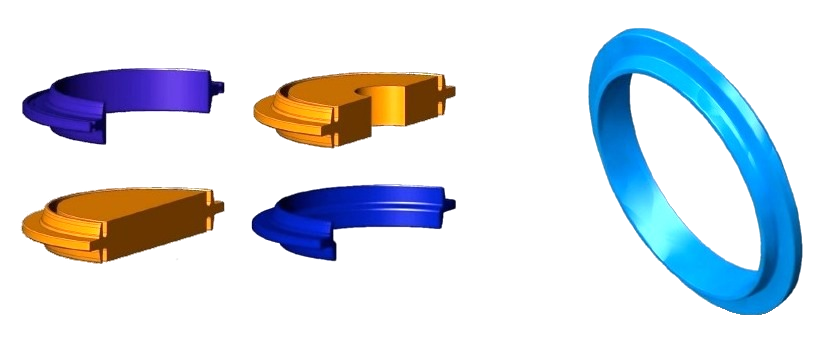

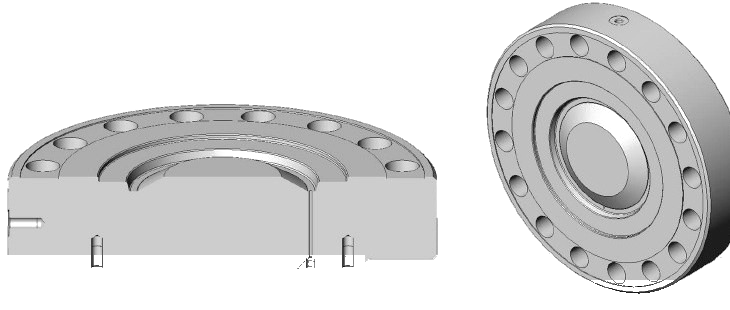

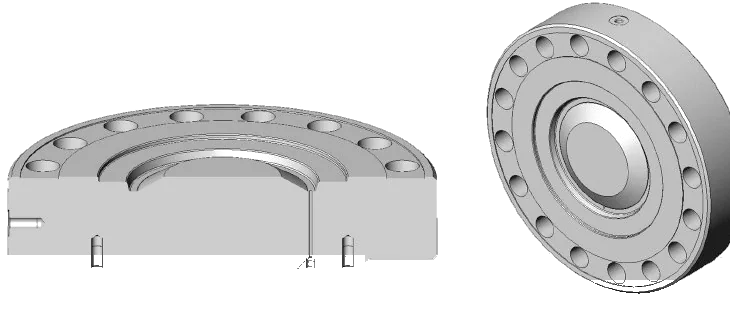

O sistema FlangeTec® substitui flanges ASME B16.5 e B16.47 padrão por uma geometria compacta com anel de vedação metálico pressure-energized, elástico por projeto e reutilizável.
The FlangeTec® system replaces standard ASME B16.5 and B16.47 flanges with a compact geometry and a pressure-energized metal seal ring — elastic by design and reusable.

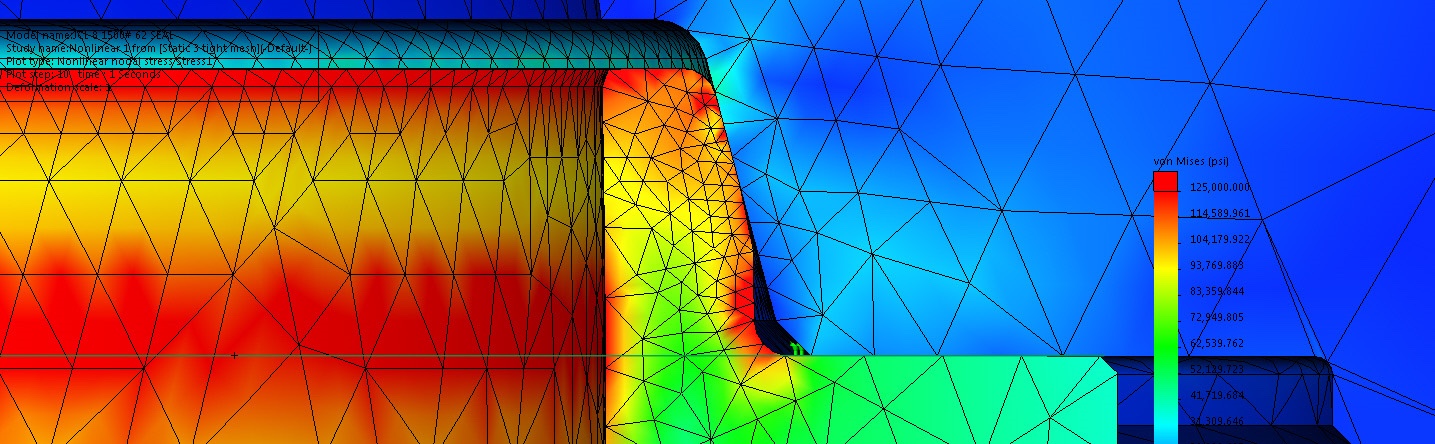

Projetado segundo ASME VIII Div. 1, 2 e 3, com análise FEA (ANSYS) para cargas dinâmicas, combinadas e térmicas. Certificação de projeto por terceira parte via DNV, Lloyd's, ABS e Bureau Veritas. Mais de 50 anos de histórico de serviço.
Designed to ASME VIII Div. 1, 2 and 3, with FEA analysis (ANSYS) for dynamic, combined and thermal loads. Third-party design certification via DNV, Lloyd's, ABS and Bureau Veritas. Over 50 years of service history.
No Brasil, a LTS Energy conta com ampla base instalada e em operação, com suporte técnico de manutenção ao longo do ciclo de vida.
In Brazil, LTS Energy has a broad installed base in operation, with technical maintenance support throughout the life cycle.

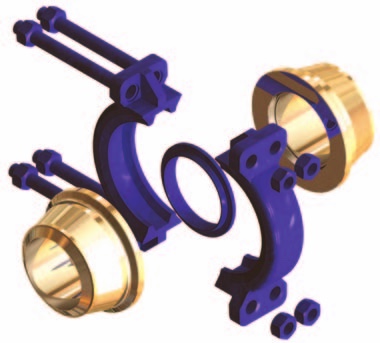

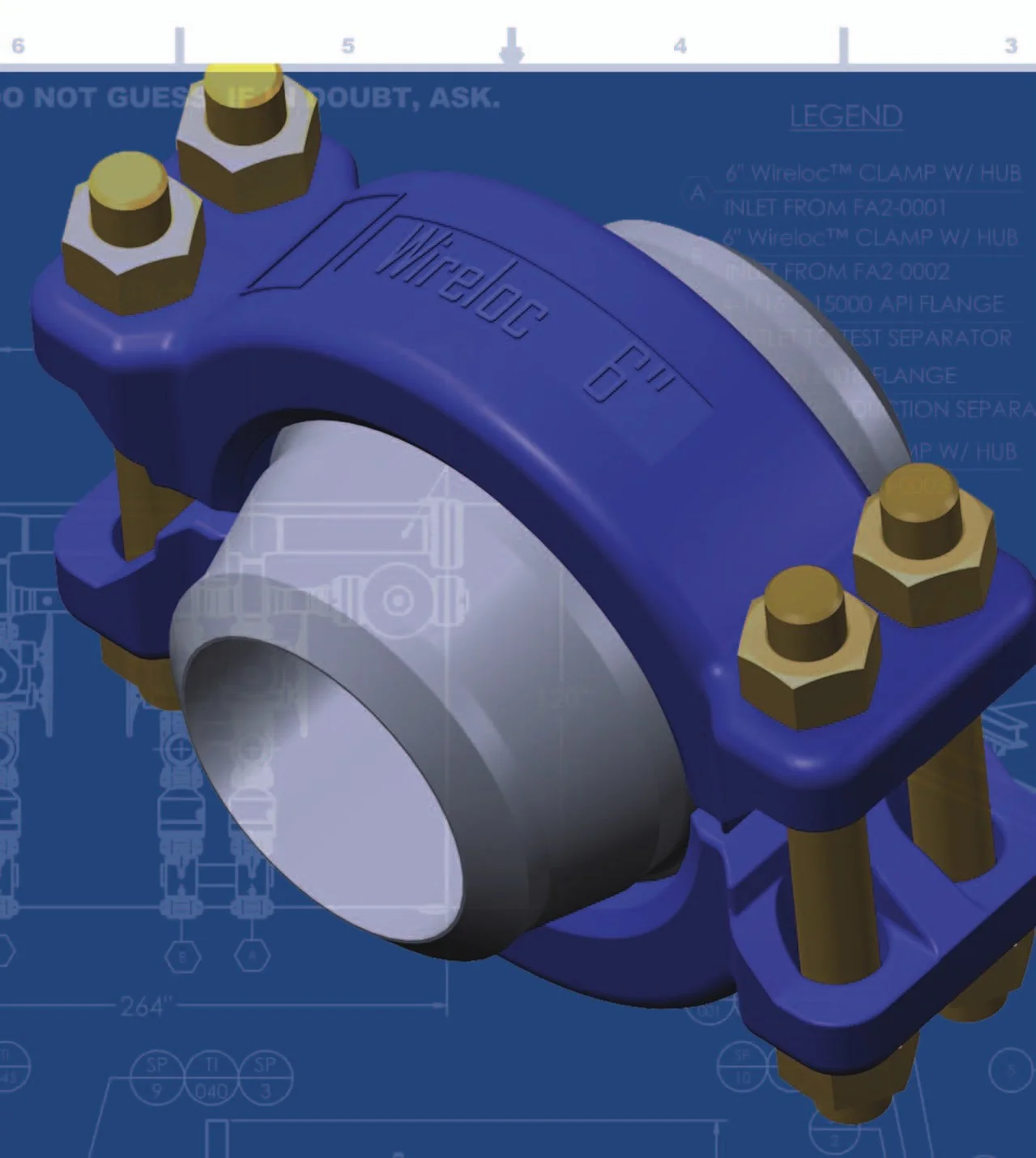

O conector WIRELOC® substitui flanges ASME B16.5 e B16.47 por uma geometria clamp compacta — mais de 80% de economia de peso e de espaço.
The WIRELOC® connector replaces ASME B16.5 and B16.47 flanges with a compact clamp geometry — over 80% weight and space savings.
Projeto conforme ASME VIII Div. 1 e 2 — para vasos de pressão, pig launchers, trocadores de calor, separadores e tubulação de processo. Anel de vedação totalmente metálico, com mais de 50 anos de histórico de serviço; selos pressure-energized elásticos por projeto e reutilizáveis. Certificação de projeto por terceira parte via DNV, Lloyd's, ABS e Bureau Veritas.
Designed to ASME VIII Div. 1 and 2 — for pressure vessels, pig launchers, heat exchangers, separators and process piping. All-metal seal ring with over 50 years of service history; pressure-energized seals elastic by design and reusable. Third-party design certification via DNV, Lloyd's, ABS and Bureau Veritas.
Ferramenta de campo: identifique o anel pela medida, encontre o WIRELOC® equivalente a conectores de outras marcas já instalados e emita a consulta técnica.Field tool: identify a ring by dimension, find the WIRELOC® equivalent to installed connectors from other brands, and issue the technical inquiry.

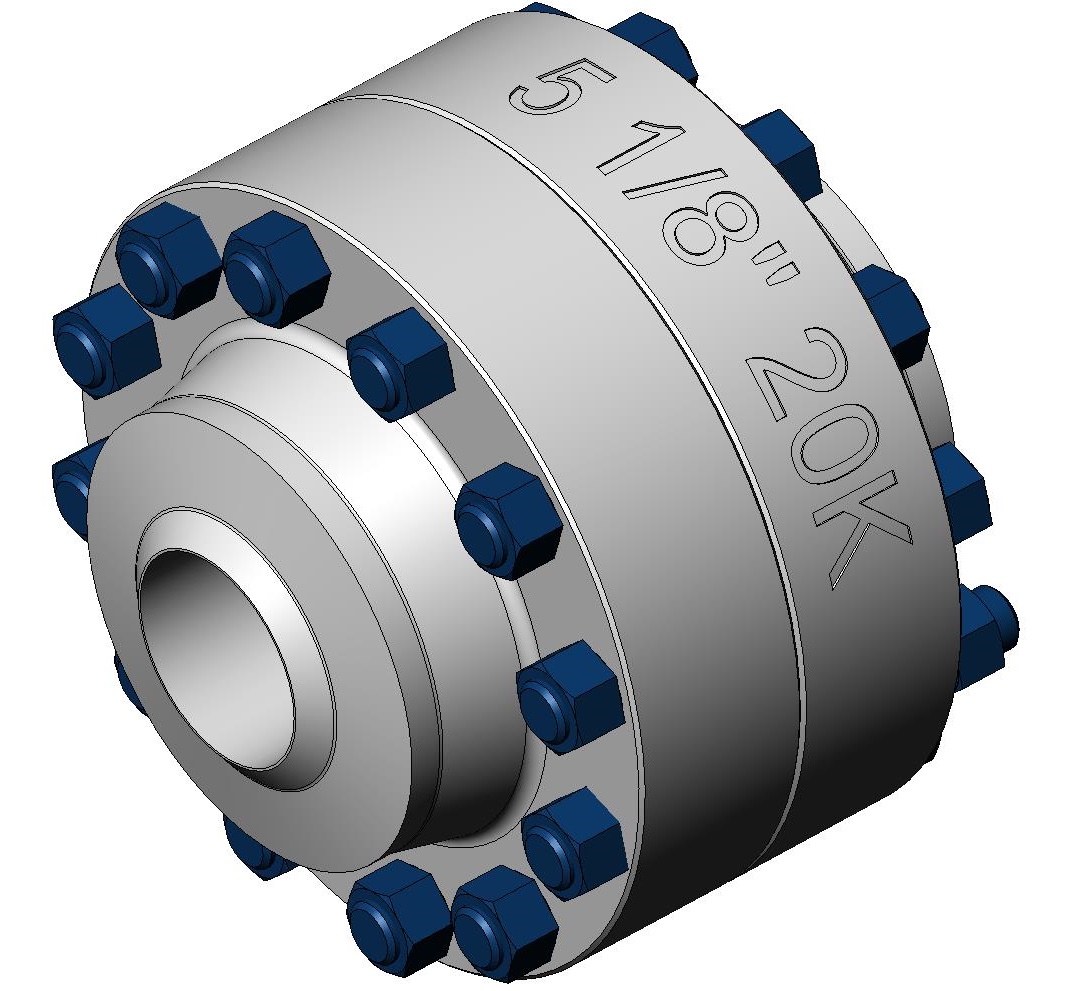

A demonstração de capacidade mais exigente da LTS Energy: flanges compactos qualificados para as pressões e temperaturas extremas do pré-sal profundo.
LTS Energy's most demanding capability statement: compact flanges qualified for the extreme pressures and temperatures of the deep pre-salt.
A LTS Energy projeta e fabrica conectores clamp, flanges compactos, sistemas de pigging e fechamentos rápidos de serviço crítico HP/HT (High pressure and High temperature), com a série FlangeTec® CF API até 20.000 psi. Explore a linha completa direto no site do fabricante.
"Precision under pressure" — LTS Energy designs and manufactures clamp connectors, compact flanges, pigging systems and quick closures for HP/HT (High pressure and High temperature) critical service, with the FlangeTec® CF API series up to 20,000 psi. Explore the full line on the manufacturer's site.

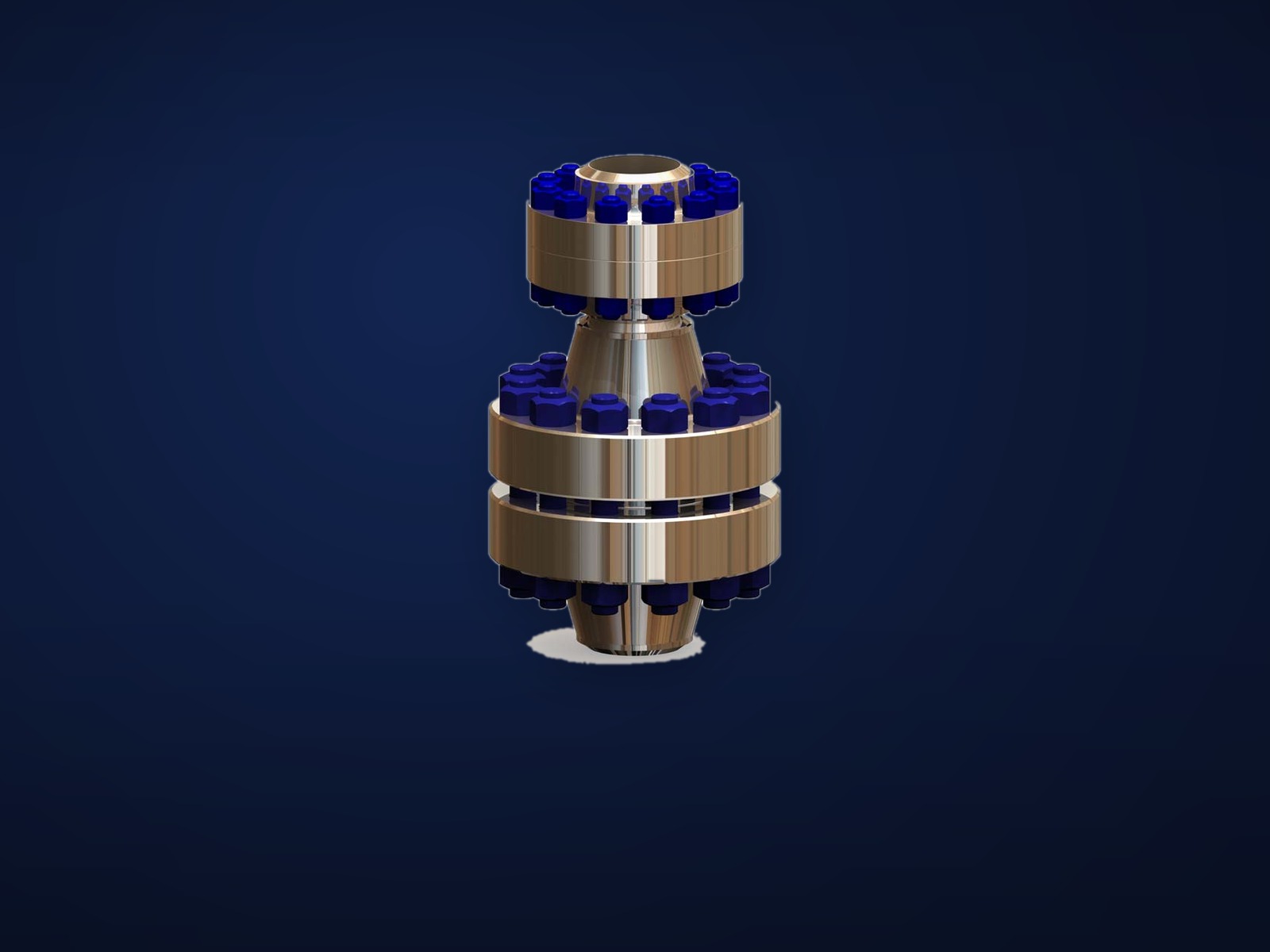

Linha HP/HT de flowline e flanges compactos.HP/HT flowline and compact flange line.
Ver no fabricante ↗View at manufacturer ↗

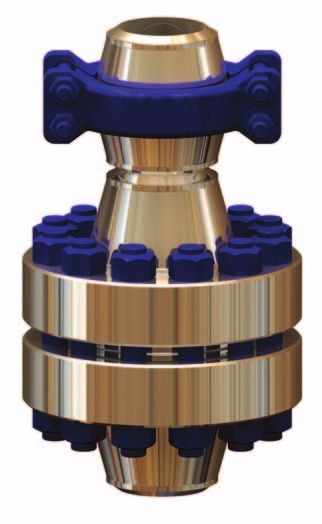

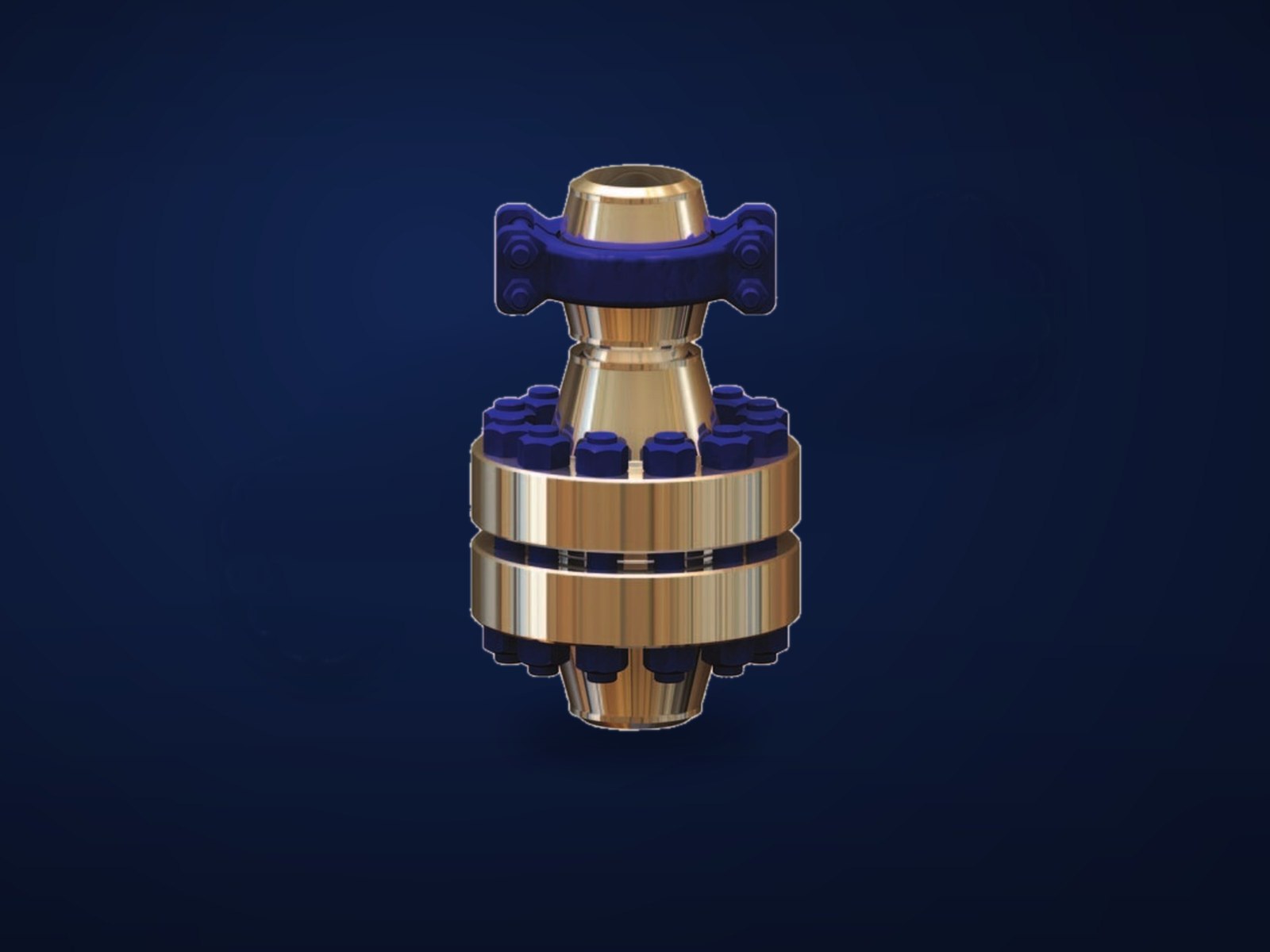

Conector clamp com anel de vedação metálico.Clamp connector with metal seal ring.
Ver no fabricante ↗View at manufacturer ↗

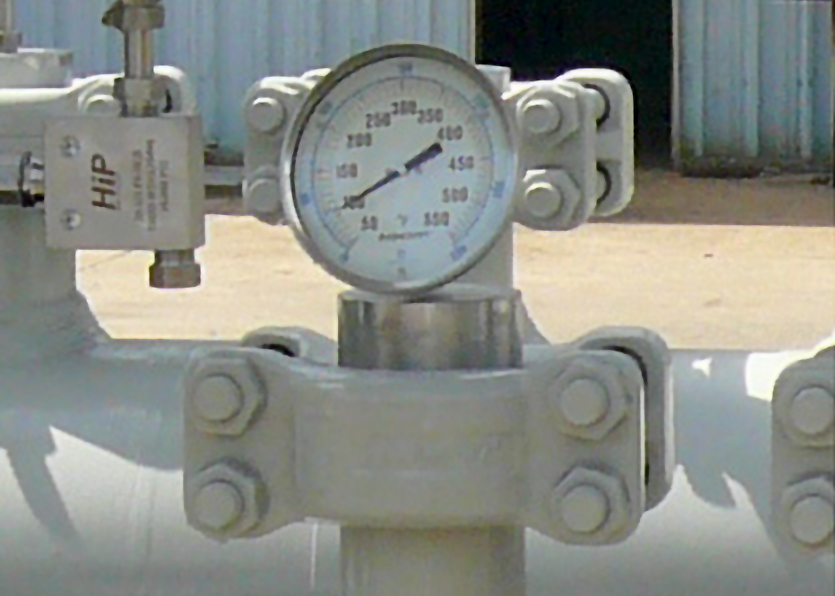

Poços termométricos HP/HT para instrumentação (ASME PTC-19.3).HP/HT thermowells for instrumentation (ASME PTC-19.3).
Ver no fabricante ↗View at manufacturer ↗

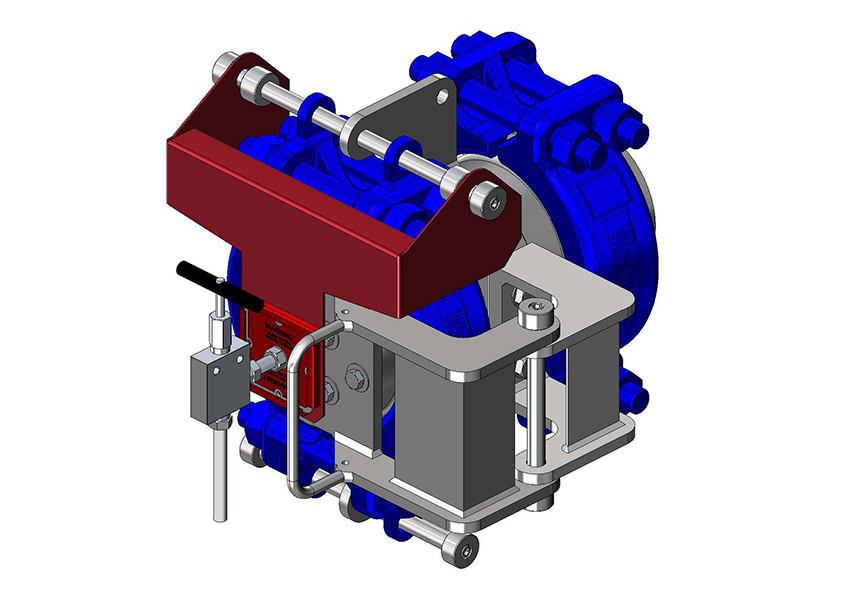

Fechamento rápido four-bolt ClampTec® para vasos e dutos.ClampTec® four-bolt quick closure for vessels and pipelines.
Ver no fabricante ↗View at manufacturer ↗Links levam ao site oficial da LTS Energy.Links go to the official LTS Energy website.
Os catálogos das representações são enviados mediante solicitação. Preencha o formulário e a VERTPLANNERS retorna com o material técnico.Our brands' catalogs are shared on request. Fill out the form and VERTPLANNERS will get back to you with the technical material.
Solicitar catálogoRequest catalogFale com a VERTPLANNERS para especificação, cotação e suporte técnico no Brasil — sob a governança documental necessária para a cadeia Petrobras.
Contact VERTPLANNERS for specification, quotation and technical support in Brazil — under the documentary governance required for the Petrobras chain.
